Description
This guide explains how to configure NFC for Room Booking usage..
Requirements
- Tablet with NFC module
- Access to the TEOS web interface
How to Setup NFC

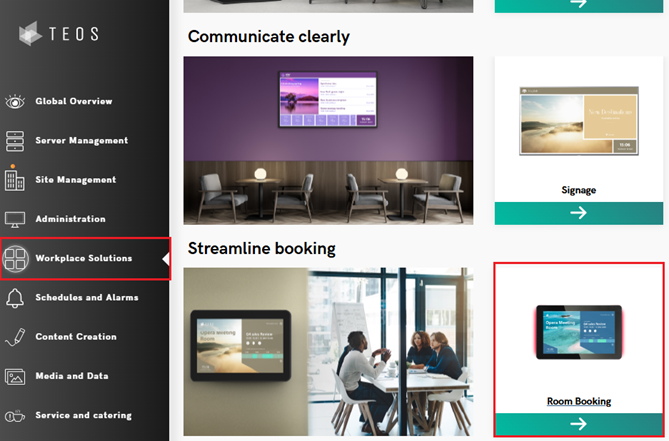

- NFC for Room Booking can be enabled within the Room Booking solution found under: Workplace Solutions > Room Booking.

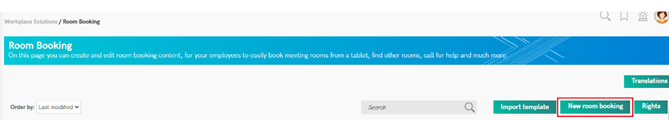

- Create a new (or edit an existing) Room Booking solutions.

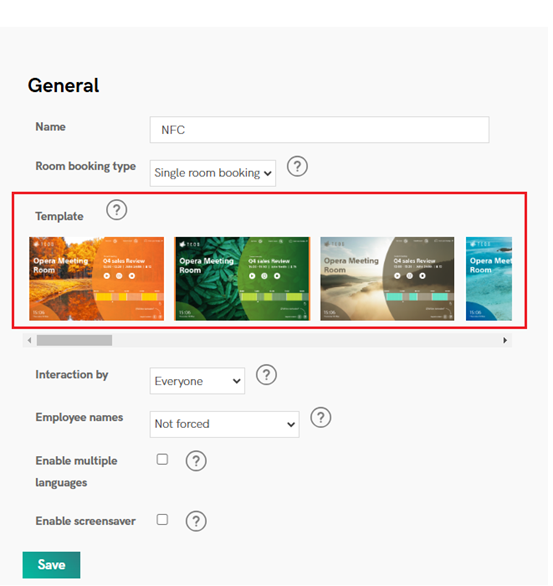

- Choose a template for your Room Booking Solution (can be modified after pressing save).

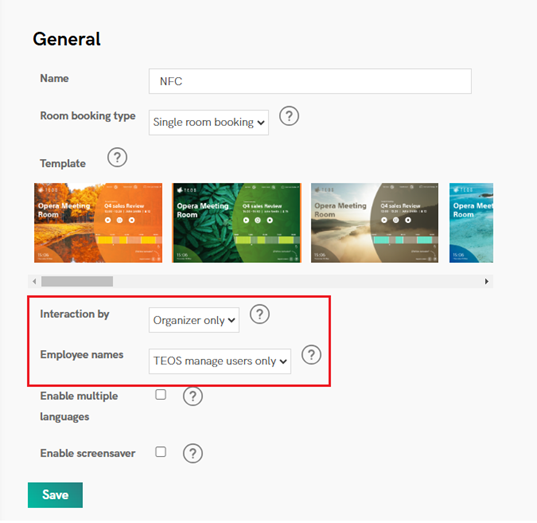

- Once the name and Template have been set, you can adjust the following settings for NFC usage: Interaction by:
Set this to: ‘Organizer only’ authentication with an RFID reader is required
Employee Names:
Set this to: ‘Organizer only’ authentication with an RFID reader is required (ID identified in TEOS)
Connecting the NFC/RFID ID to users in TEOS.
Once the Room Booking solution has been saved, you will need to add users with their NFC/RFID ID.
This can be done manually or by adding them through Azure AD:

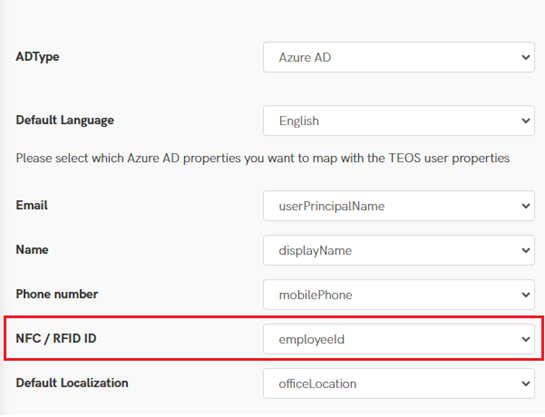

Through Azure AD (See our manual on how to setup Azure AD for TEOS), add the setting ‘NFC/RFID ID’ with the option ‘employeeId’:
Manually adding the NFC/RFID ID in TEOS:

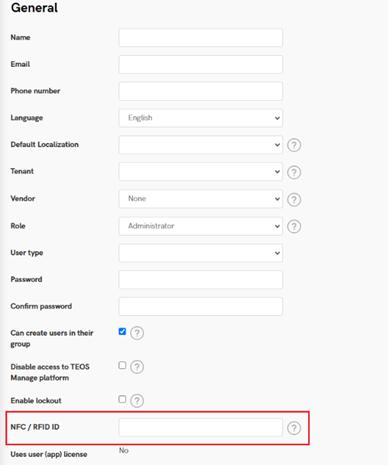

Go to Administration > AV Devices > Edit the user you want to connect the NFC/RFID ID to.
On the bottom left side of the screen, you will find the NFC/RFID ID option:
You have now setup NFC for Room Booking.
