Description

This guide explains how to set up IP Control for Sony Bravia. New models of Sony Bravia no longer include the option “none” for authenticating IP Control, this guide will explain how to configure this so IP Control can be used with TEOS.

For android 12 and higher, a password will be set within TEOS to authenticate the device with that same password. Do note that one password can be entered within TEOS, meaning all devices that will use a Pre-Shared Key for TEOS will need the same password.

Requirements

• Access to the settings of a Sony Bravia display
• Administrator access to TEOS Manage (Android 12 and higher)

How to enable Simple IP Control on a Sony Bravia

Sony Bravia (Android 11 and below)

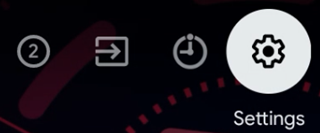

1. Enter the settings of the device.


2. Navigate to “Network and Internet”.

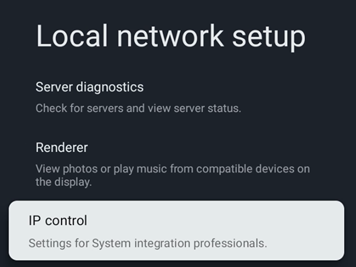

3. At the bottom of the page is a setting called “Local network setup”.


4. In here is an option called “IP control”, select this.

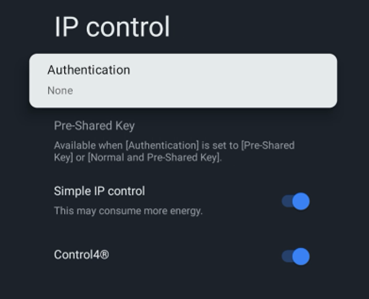

5. Now enable “Simple IP Control” and set “Authentication” to “None”.


6. Simple IP Control is now enabled.

Sony Bravia (Android 12 and higher)

Device

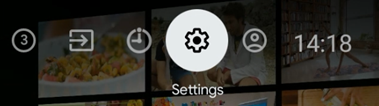

1. Navigate to the settings of the device.


2. Within settings, navigate to “Network and Internet > local network setup > IP Control”.


3. Make sure “Authentication” is set to “Pre-Shared Key”. And enable “IP Control”.


4. Then select “Pre-Shared Key”.

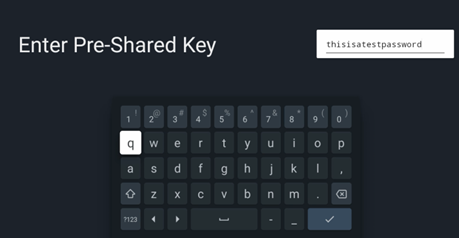

5. Enter a desired password to use.



The IP Control on the Sony Bravia is now ready to use.

TEOS Manage

1. Login on the TEOS Web interface.

2. Navigate to “Server Management > Settings”.

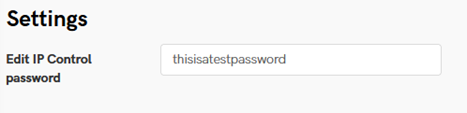

3. Edit the setting called “Edit IP Control password”.


4. Enter the password that has been set up on the end device.



TEOS should now be able to use IP Control on the devices with the given password.


BRAVIA Web Control UI

For all versions, it is required that BRAVIA Web Control UI is installed, this will ensure complete functionality of Simple IP Control.



1. Set the device to Pro Settings Mode and navigate to the Pro Settings.


2. Select the option Startup services, and then BRAVIA Web Control UI.



3. Select Enable.


4. And then install.

   Scroll down and select accept, The installation will then start.

5. After the installation is completed, the device will restart, afterwards navigate to Pro settings and select admin password.

   Enter the password "sony1234"

6. The Sony Bravia is now ready to use with TEOS using Simple IP Control.

If there are any technical difficulties, please send a mail to: support@teos.support
