Description

This guide with describe the technical specification of TEOS Connect.

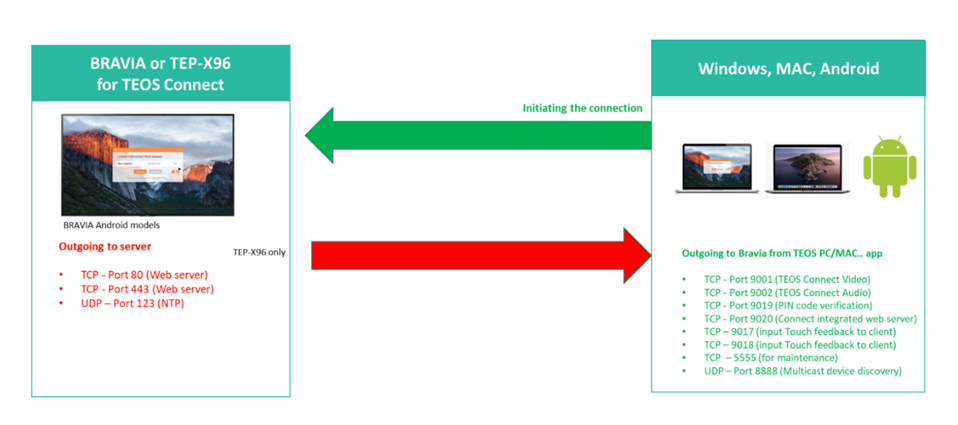

Network requirements

Please check the network architecture and verify the ports to open between TEOS Connect Receiver and TEOS Connect Client (from Android, Mac OS and Windows OS).

Licensing

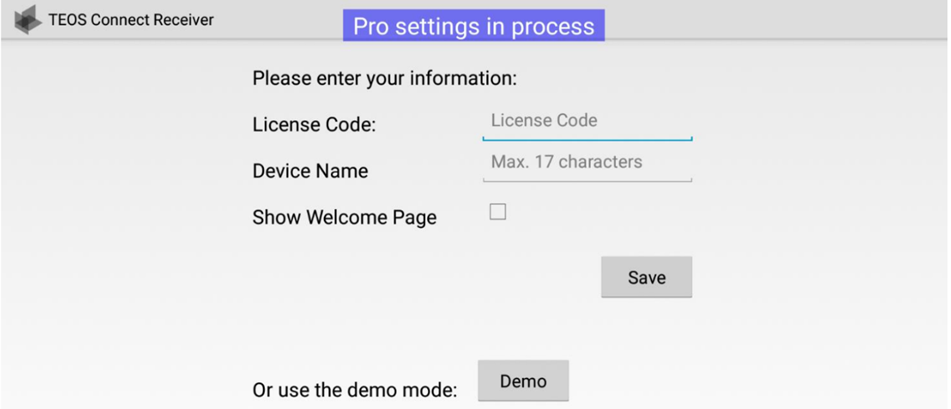

When opening TEOS Connect Receiver for the first then you will need to enter the following information:

1. Device Name; name of the device for the Auto discover from TEOS Connect client App.

2. Licence Code; received by mail and used to register device (using Model name and Serial number).

3. Show Welcome page; to enable to option to show the welcome page.

4. Save; to keep the information and register the licence.

5. Demo; you can use the demo mode which enables TEOS Connect Receiver for a 30-day trail.



Assign licence from TEOS Manage

If there are TEOS Connect licences available in TEOS Manage you can assign it through the web interface.

Navigate to “Administration > AV Devices” and select the device you want to push a TEOS Connect licence to.

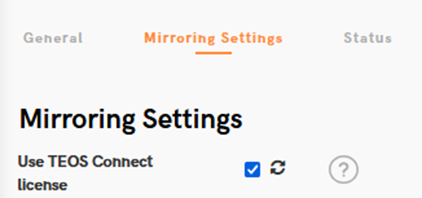

Select “Mirroring Settings” and select “Use TEOS Connect license”.

Select the button to the right of the checkbox to push the licence to the device.
You have now assigned a TEOS Connect licence from TEOS Manage.
